Specification:

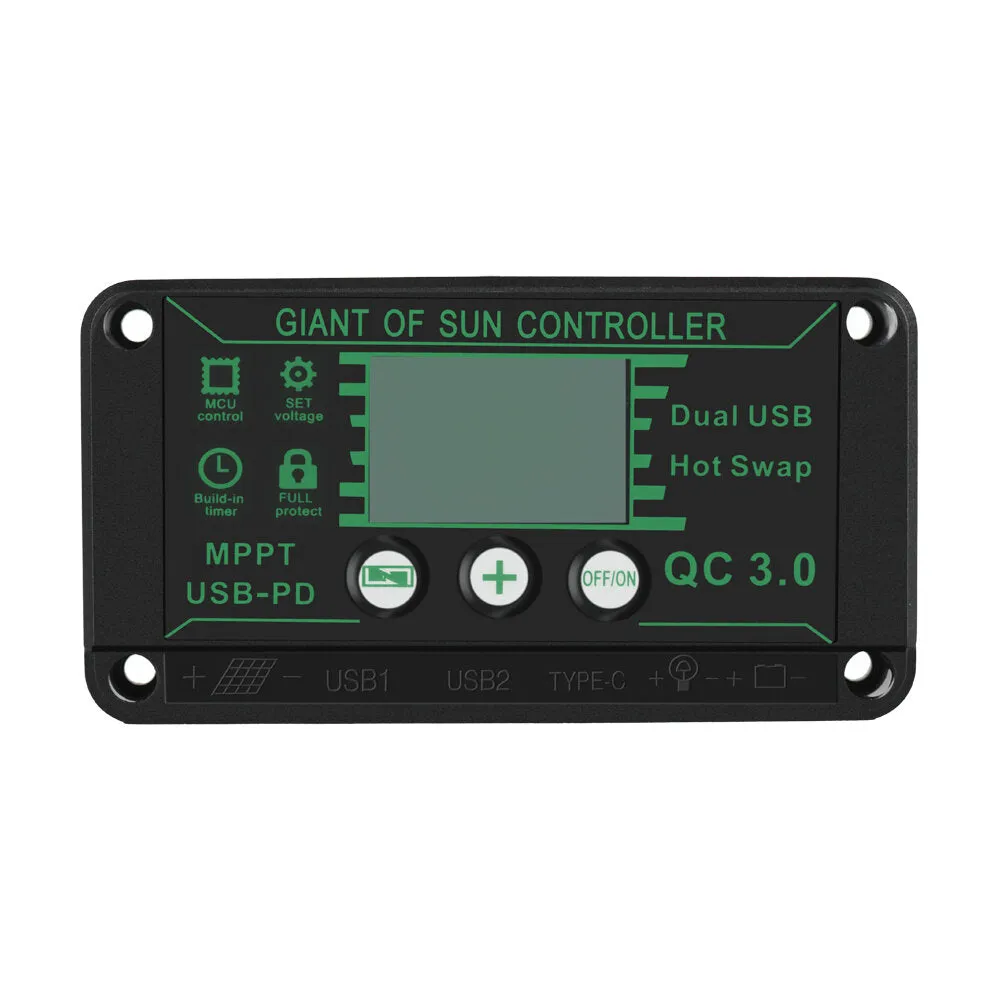

Name: Solar Charge Controller
Rated Current:30A/60A/100A
System voltage:12V/24V
Max PV Voltage Input:50V

Features:
1. 【 Accurate monitoring 】 The solar controller adopts an industrial grade main chip, with 16AD sampling accuracy, temperature, and accurate real-time discharge current display, making the power generation situation clear at a glance

2. 【 Fast charging speed 】 MPPT solar controller has high charging efficiency, automatic focusing MPPT tracking and loading, high charging efficiency, uninterrupted detection and charging, bidirectional focusing and tracking

3. 【 Fast charging speed 】 MPPT solar controller has high charging efficiency, automatic focusing MPPT tracking and loading, high charging efficiency, uninterrupted detection and charging, bidirectional focusing and tracking

4. 【 Multi intelligent protection 】 The charging controller has multiple intelligent protection functions, including built-in overcurrent protection, short circuit protection, reverse connection protection, open circuit protection, and automatic recovery

5. 【 High tracking efficiency 】 The solar fast charging controller adopts innovative MPPT technology, with a tracking efficiency of up to 99%. Compared with ordinary controllers, the efficiency can be improved by 10% -30%

Function:

1. Always keep the battery at charging voltage

2. Prevent overcharging of the battery

3. Prevent excessive battery discharge

4. Prevent the battery from charging backwards on the solar panel at night

5. Battery reverse connection protection

6. Reverse connection protection of solar panels

7. When the battery voltage is low, the controller will automatically reduce the system load. If the battery voltage returns to normal, restart charging

8. The controller automatically compensates for temperature, and the charging voltage is a function of environmental temperature changes
