Manufacture ID: SM13082AR.223

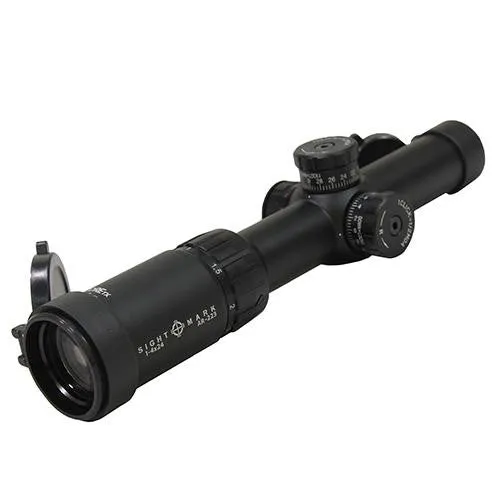

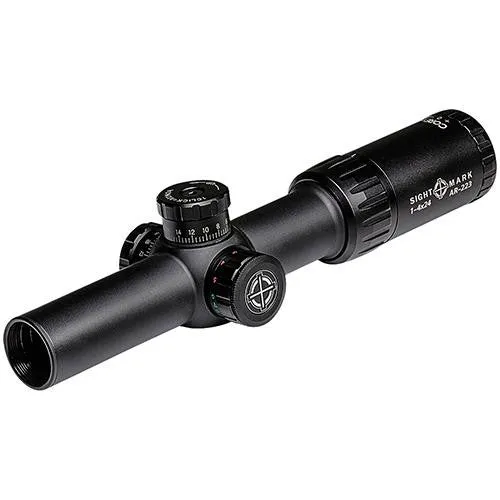

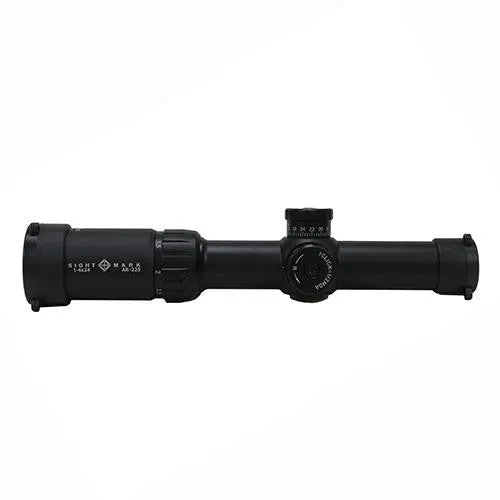

Specifically calibrated for the .223, the Sightmark Core TX 1-4x24 AR-223 Riflescope sets the standard when taking close-medium range shots. Perfect for tactical operations, competition, target shooting or hunting, the Core TX 1-4x24 Riflescope features exposed, lockable turrets helping prevent loss of zero. Variable 1-4x magnification and a fine-etched bullet-drop-compensating (BDC) reticle, including adjustable red and green illumination, makes target acquisition faster and easier, even in low-light conditions. The Core TX 1-4x24 even includes a throw lever for lightning fast, on-the-fly magnification adjustments. Hard-anodized, matte black, 6061-T6 aircraft-grade aluminum construction and advanced, fully multi-coated glass provides the same uncompromising quality and image performance demanding shooters have come to expect from Sightmark. Ready to handle your extreme environments, the Sightmark Core TX 1-4x24 AR-223 Riflescope is nitrogen-filled, waterproof, fogproof, dustproof and shockproof.

Features:

- BDC reticle calibrated for .223 55 grain
- Exposed, pop-up locking turrets
- Second focal plane reticle
- Red/Green illuminated reticle
- Single-piece, 30mm tube
- Aircraft grade aluminum
- Hard anodized finish
- Shockproof, fogproof, waterproof
- Fully multi-coated optics

Includes:

- Flip up lens covers
- Throw lever attachment
- 30mm scope rings
- CR2032 battery

Specifications:

- Battery life, hours: 100-70
- Battery Type: CR2032
- Battery Voltage, V: 3V
- Body Material: Aluminum
- Diameter, Exit Pupil: 11-6
- Diameter, Eyepiece: 1.65/42
- Diameter, Objective Lens: 24mm
- Diameter, Tube: 30/1.18
- Diopter Adjustment: 2/-2
- Elevation Range of Adjustment: 120
- Eye Relief: 4-3.47/101.6-94
- Field of view, ft@100yd: 96.1-24.1
- Field of view, m@100m: 32.04-8.03
- Finish/Color: Matte black
- Focal Plane: 2nd
- Fog Proof: Yes
- Height: 2"
- Illuminated (yes/no): Yes
- IP Standard: IP 67 -waterproof and dustproof
- Length: 9.64"
- Lens Coating: Fully multi-coated
- Magnification: 1-4x
- Maximum Recoil: 1,200G's
- MOA Adjustment: 1/2MOA
- Nitrogen Filled: Yes
- Operating Temp,F/C: 0 to 120 / -17 to 49
- Parallax Setting: 100
- Reticle: Etched glass
- Reticle Brightness Setting: 0-5
- Reticle, Color: Red/Green
- Reticle, Type: AR-223
- Shockproof: Yes
- Sunshade: No
- Weight: 16.2 oz.
- Width: 2.6"
- Windage & Elevation, Lock: Yes
- Windage Range of Adjustment: 120
