Features
- Safety
- Long life type prismatic LiFePO4 cells (104Ah).
- Cell certification: UN38.3, ROHS, IEC62619, Ul1973
and UL9540A. - Battery certification: UN38.3, MSDS, CE.
- Battery certification: UN38.3, MSDS, CE.
- Design

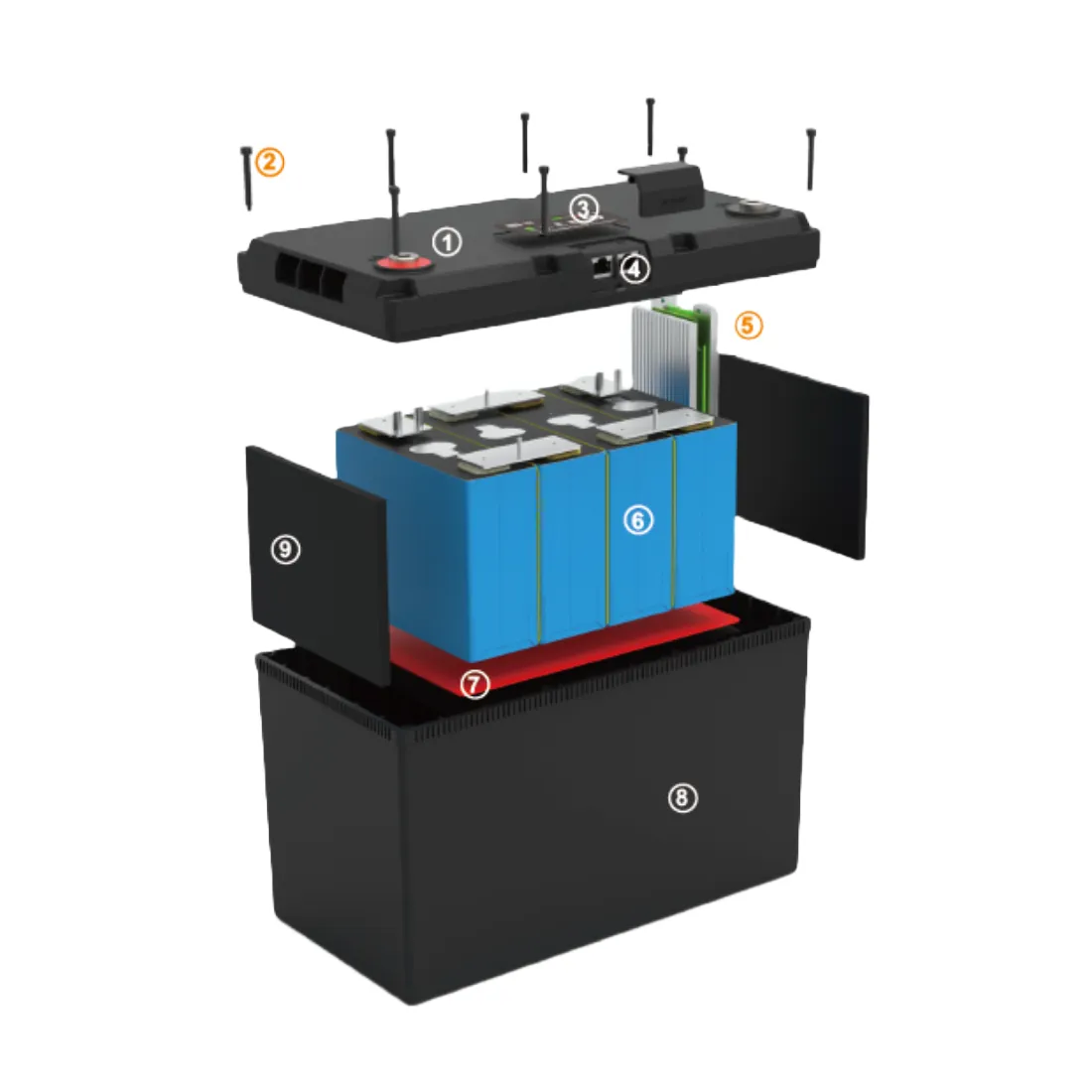

- Detachable ABS case, better than traditional case.
- ON/OFF Button, LED indicators for SOC, RUN and ALM.
- 65 Class (Without COM port).
- Maintenance free.
- Battery Management System
- Integrated Software BMS inside.
- Independent protection for charge and discharge.
- OVP, LVP, OTP, LTP, Short circuit protection.
- Optional Parts: Heater, Bluetooth Module (Built-in),
Bluetooth Module (External), LCD, Communication
Port (RS485, CAN).
Technical Specifications

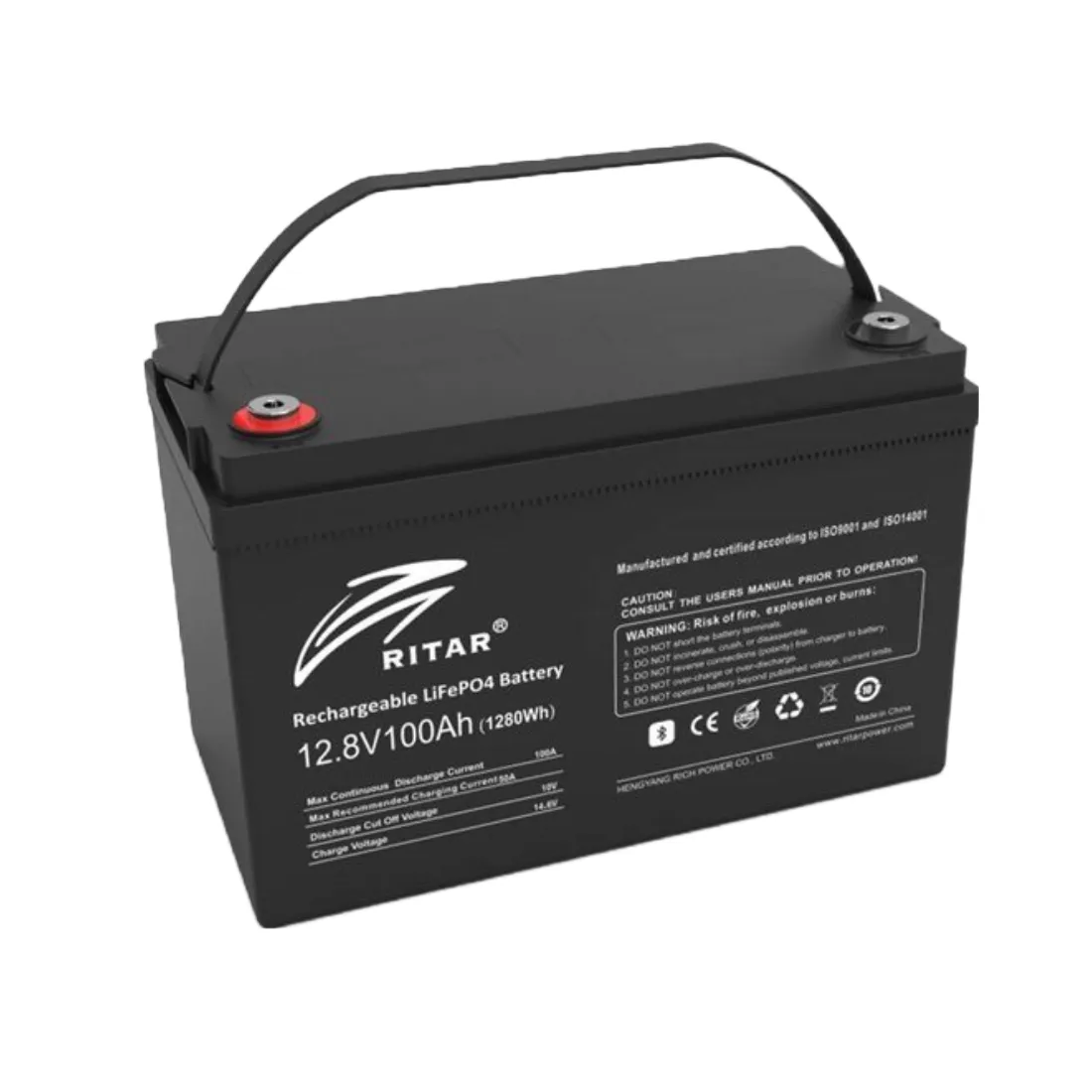

- Model: LFP12V100AH-N.
- Nominal Voltage [V]: 12.8.
- Nominal Capacity [Ah]: 100.
- Total Energy [Wh]: 1280.
- Max. Charging Current [A]: 100.
- Recommended Charging Current [A]: 50.
- Charging Voltage [V]: 14~14.6.
- Max. Discharging Current [A]: 100.
- End of Dicharge Voltage [V]: 11.2.
- Pulse Discharge Current 300A @ 10s
- Dimension (W*D*H, mm): 330*172*214.
- Weight [Kg]: 15.
- Operation Humidity: 0~95% RH (No condensing).
- Operating Temperature Range
- Charge: 0 ~ 50°C;Discharge: -20 ~ 55°C.
- With Heater : Charge/Discharge: -35~50°C.
- Protection
- Over charge; Over discharge, Over temperature,
Low temperature, Short circuit. - Parallel Support: Yes, Max, 2 Sets.
- Series Support: Yes, Max. 4 Sets.
- Cycle Life: >4000 cycles.
- Designed Calendar Life: >10 Years.
